Extruded Bonded

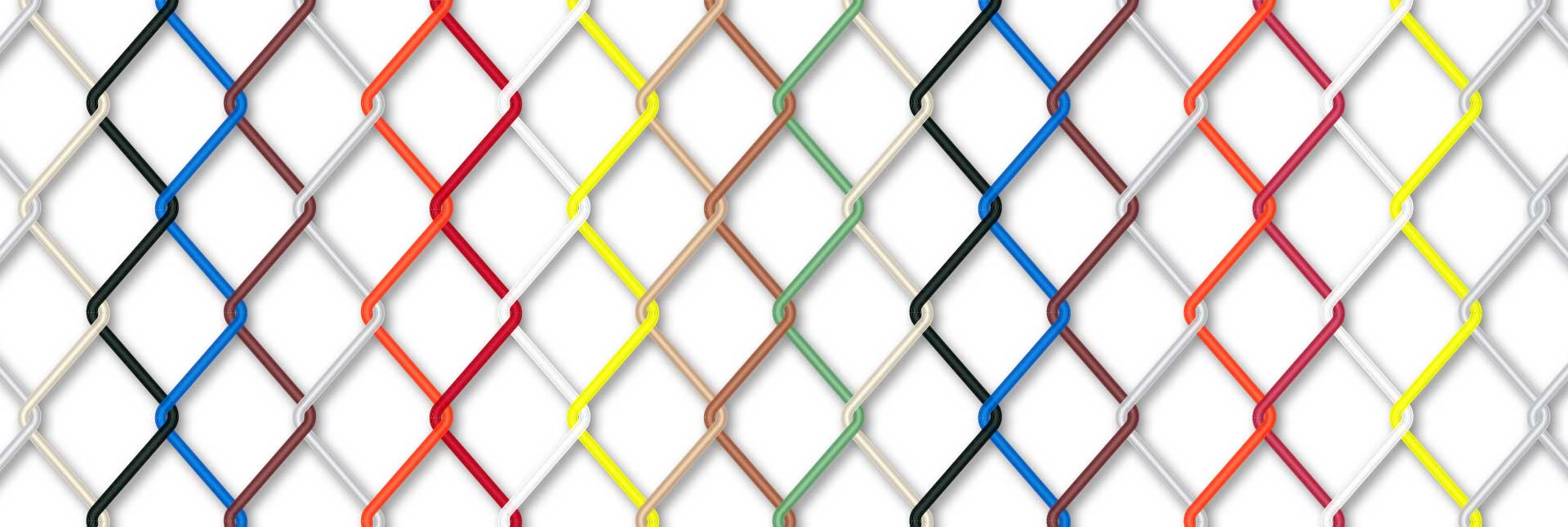

Often called “extruded and bonded”, this type of chain link fence features polyvinyl chloride, or PVC, that has been applied by pressure to a steel core wire coated with adhesive.
Our extruding process features the steel core wire traveling through the extruding machine, where the PVC is melted and compressed directly onto the heated adhesive under 5000 lbs of pressure to create a dense and impervious coating.

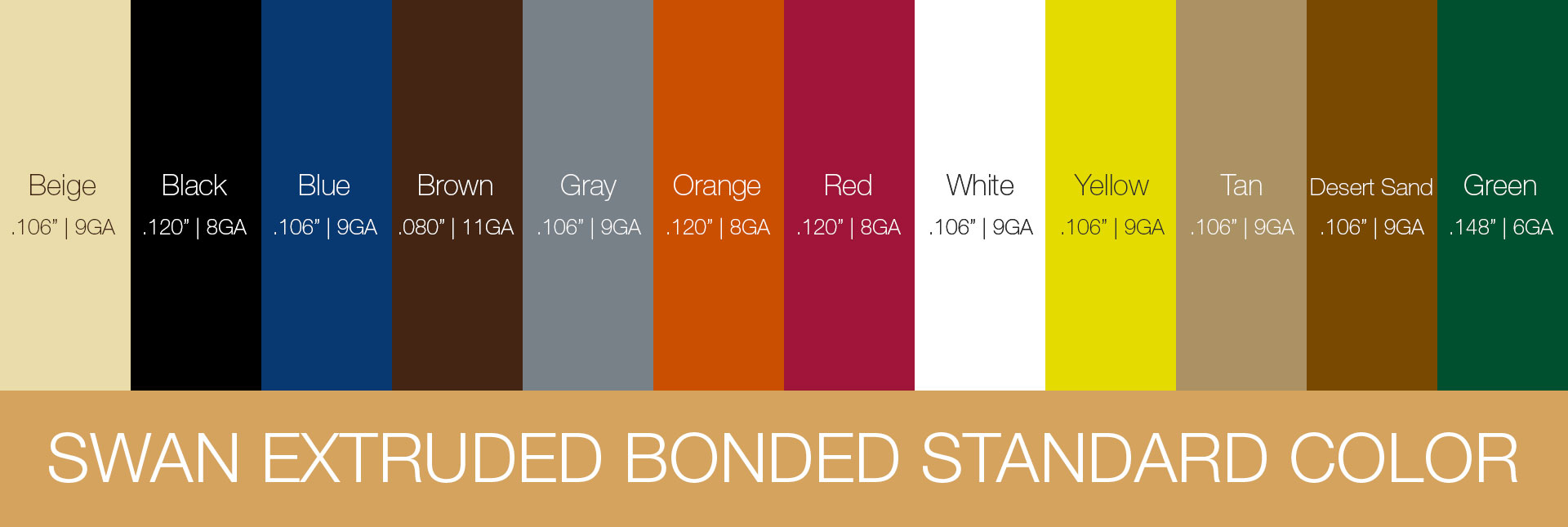

Our extruded bonded fence comes in the below 12 different standard colors.
EXTRUDED BONDED FENCE
STANDARDS AND SPECIFICATIONS
ASTM F-668 Class 2a
AASHTO M-181 Type IV Class A
| Gauge | Mesh Size | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 2" | 1-3/4" | 1-1/2" | 1-1/4" | 1" | 3/4" | 5/8" | 1/2" | 3/8" | |
| 14 CORE / 11 FINISH |
*** | *** | *** | *** | *** | *** | *** | *** | *** |
| 12 CORE / 9 FINISH |
o | o | o | o | o | o | o | o | o |
| 11 CORE / 8 FINISH |
o | o | o | o | o | o | scars on bends | scars on bends | scars on bends |
| 9 CORE / 6 FINISH |
o | o | o | scars on bends | scars on bends | - | - | - | - |
| 6 CORE / 3 FINISH |
scars on bends | scars on bends | scars on bends | scars on bends | scars on bends | - | - | - | - |
*** - Please contact for more details.
